Low Airflow or Low Refrigerant? A Magnolia Zoned HVAC Case Study

Sometimes an air-conditioning problem is not just one problem.

We recently worked on a zoned HVAC system in Magnolia, Texas that showed why we do not diagnose equipment from one pressure reading, one temperature reading, or an assumption about what the problem ought to be.

The original complaint involved a detached casita supplied by a very long duct run from the main house. The casita would not stay comfortable because it was not receiving enough useful cooling through that run. We ultimately installed a dedicated mini-split for the casita, which was a better fit for the space.

That solved the casita problem, but it did not end the story. The main house was still losing ground on hot afternoons. With the thermostat set around 75°F, the indoor temperature could climb to approximately 80°F.

This was not a situation where we wanted to guess or immediately reach for refrigerant. We needed to see how the complete system behaved under the conditions the homeowner actually experienced.

The system and zoning arrangement

The central system included:

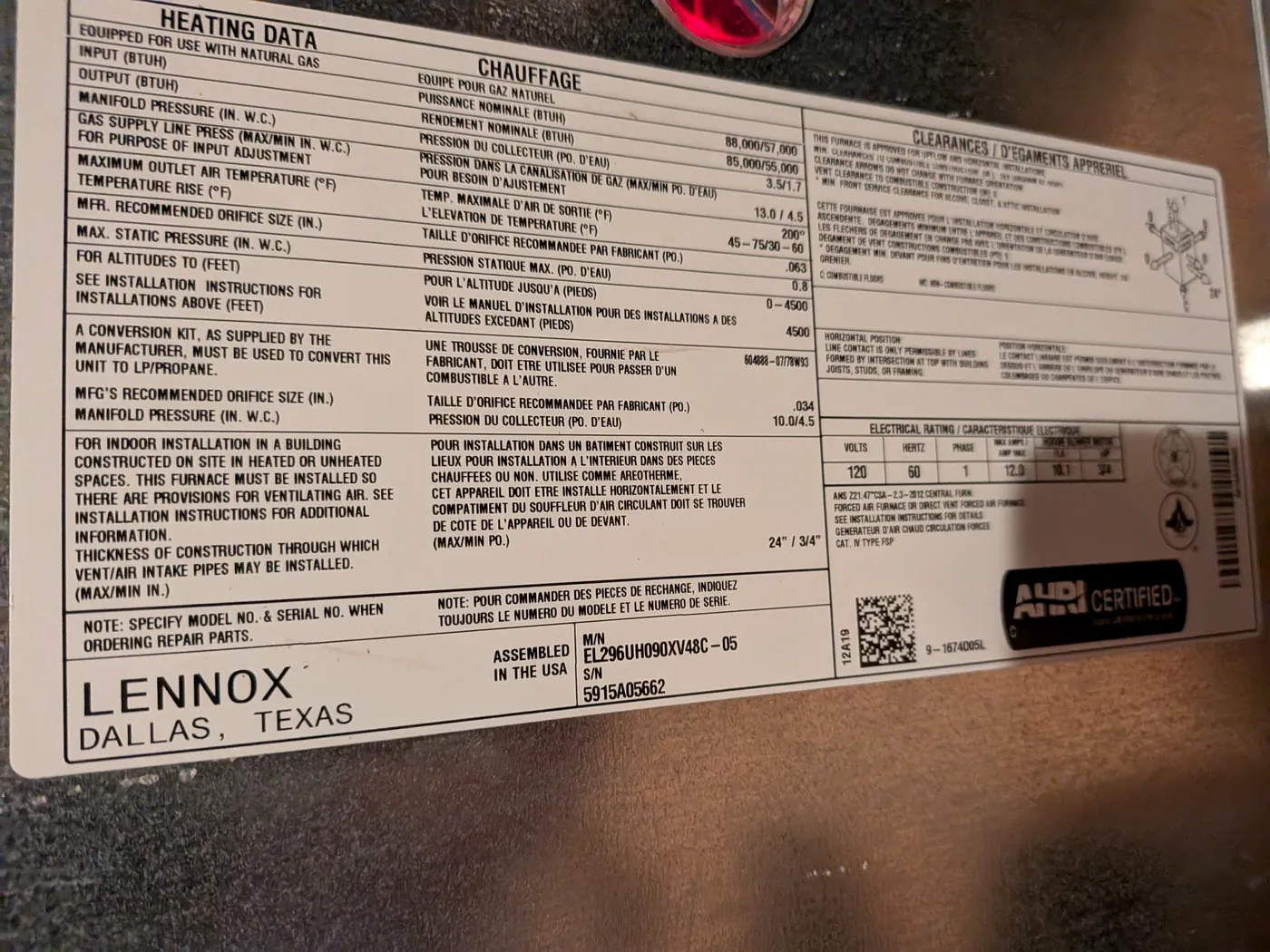

• A Lennox EL296UH090XV48C furnace with a variable-speed blower

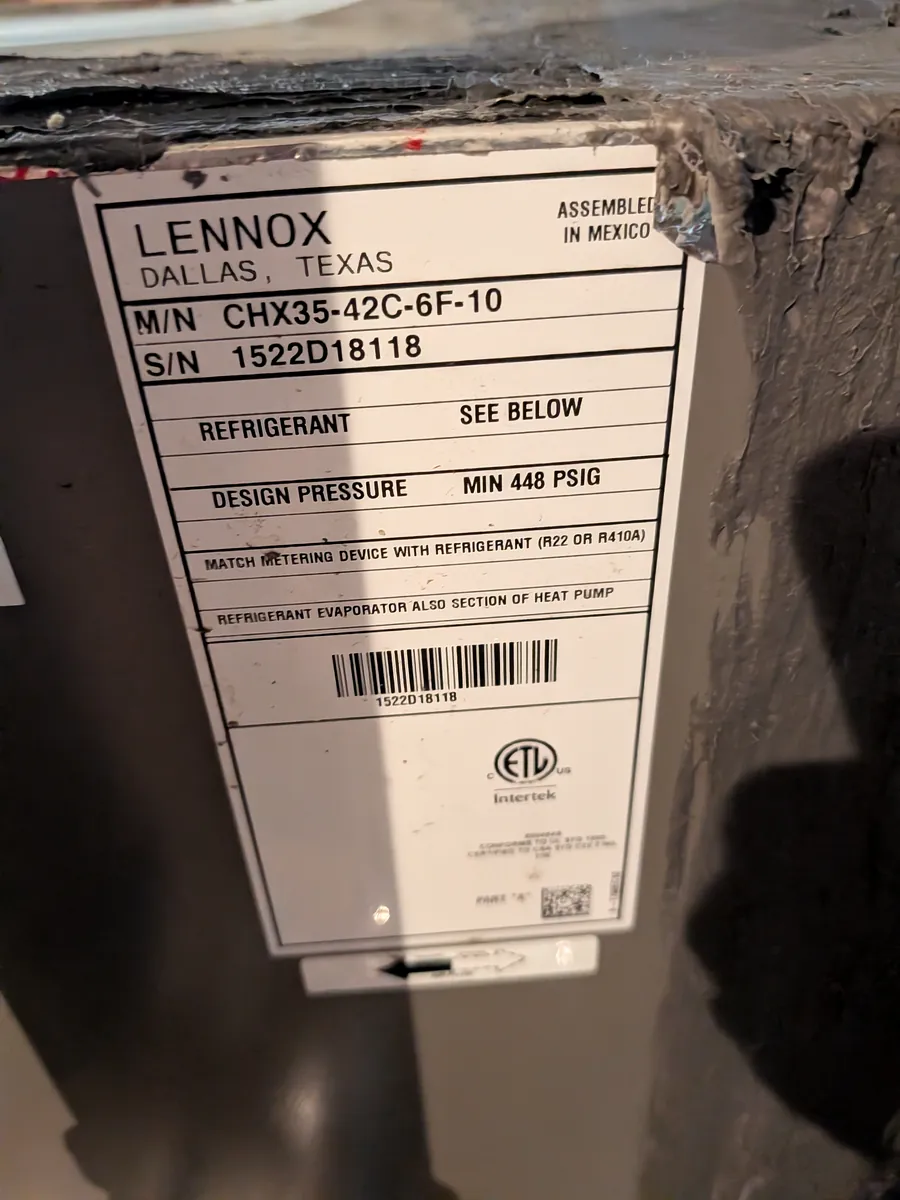

• A 3.5-ton evaporator coil
• A 3-ton R-410A outdoor unit
• Three original zones
• A bypass-damper arrangement to help manage duct static pressure as zones opened and closed

After the casita received its own mini-split, its original central-system zone generally remained closed. The central system was therefore operating primarily through the two remaining house zones.

A blower capable of more airflow than the outdoor unit requires is not automatically a problem, and neither is a slightly larger evaporator coil. The important questions are how the blower is configured, how much air the duct system can accept, and how the entire system behaves under each expected combination of zone calls.

Comparing two zones open with one zone open

We wanted to see what changed as the available duct area changed. With both active house zones open, we recorded the following baseline:

We then tested the system with only one house zone open. After changing the zone condition, we observed:

The return-air temperature had barely changed, but the supply-air temperature dropped by more than seven degrees. That increased the temperature difference across the system from approximately 23°F to almost 31°F.

Those readings were not a complete diagnosis by themselves, but the immediate response to the zoning change was an important clue.

Colder supply air did not mean better performance

Homeowners sometimes assume that colder air from a supply register means the air conditioner is working better. That is not always true.

With approximately 75°F return air and 44°F supply air, we needed to determine why the evaporator was getting so cold. A high temperature difference can indicate inadequate airflow across the evaporator, although humidity, refrigerant conditions, equipment staging, measurement location, and stabilization time all have to be considered.

In this case, the temperature difference changed dramatically when the available duct area changed. We also watched superheat fall to a low, fluctuating value during the reduced-zone condition. Because the main variable we had changed was the zoning condition, airflow became an important part of the diagnostic.

Verifying the blower configuration

We inspected the Lennox furnace controls and found that cooling-airflow DIP switches 5 and 6 were both in the ON position. On this furnace, that selects the Low cooling-airflow setting. The factory configuration is the High setting, with both switches OFF.

At some point before our visit, the programmed cooling airflow had been reduced. We do not know why, and there can be legitimate reasons for adjusting blower airflow. Humidity control, sound, duct capacity, and equipment performance can all factor into an airflow decision.

The furnace was reporting programmed airflow in approximately the 600-to-800-CFM range during some operating conditions. We also measured static pressure several times. The bypass-damper arrangement was managing static pressure as the zone dampers changed position, but acceptable static pressure alone did not make the original cooling-airflow selection correct for every operating condition.

The combination of reduced programmed airflow and a zoned duct system meant we needed to evaluate the blower, dampers, bypass, coil condition, and refrigeration circuit together.

Why airflow has to be addressed before judging the charge

Refrigerant pressures and temperatures do not exist independently of airflow.

Air moving across the evaporator supplies heat to the refrigerant. When airflow or load is reduced, the evaporator temperature and refrigeration readings can change. Depending on the equipment, metering device, and operating condition, inadequate airflow can contribute to unusually cold supply air and low or unstable superheat. If the condition is severe enough, the evaporator can eventually freeze.

That is why we were not interested in adding refrigerant based on the first set of readings alone. We first needed to correct known airflow issues, clean the coils, and let the system stabilize.

Airflow was not the only issue

It would make a cleaner story to say that we corrected the blower setting and immediately solved everything, but that is not what happened.

After cleaning the coils, working with the zone dampers, verifying static pressure, and correcting the airflow configuration, we reevaluated the refrigeration system under stabilized conditions.

The system was also low on refrigerant.

We added approximately two pounds of R-410A and charged the system to the target printed on the XC16 outdoor unit’s charging chart. For the three-ton XC16-036 model, the chart specifies approximately 5°F of subcooling, plus or minus 1°F.

We did not find an active refrigerant leak during this visit. The equipment was approximately ten years old, and a small cumulative loss during previous gauge connections or disconnections at the service valves was one possible explanation. However, that could not be proven, so we did not present it to the homeowner as a confirmed cause. Refrigerant does not normally get consumed during system operation, and a system that becomes low again should be reevaluated for leakage.

This is an important part of the case. The system had both an airflow problem and a low refrigerant charge. Those conditions can produce overlapping or partially masking symptoms, which is why diagnosing the system from a single number could have sent the repair in the wrong direction.

We did not simply turn the blower to maximum

Finding a Low blower setting did not mean that the answer was automatically to select the highest possible airflow.

This was still a zoned system. Whatever airflow the furnace produced had to move through the available ductwork. Excessive airflow through one small active zone can contribute to noise, leakage, comfort complaints, and control problems even when a bypass damper is present.

We adjusted the blower and zone dampers as parts of one system. After testing multiple operating conditions, we left the furnace on its Medium-Low cooling-airflow setting and balanced the dampers to improve overall operation.

That provided a better compromise between the airflow needed across the evaporator and what the active zones could handle.

Final readings and the homeowner’s result

After the coils were cleaned, the airflow configuration was corrected, the dampers were balanced, and the refrigerant charge was brought to the outdoor unit’s target, the stabilized temperature difference settled at approximately 19°F.

That was a much healthier operating condition than the approximately 31°F temperature difference observed during the earlier reduced-airflow test.

The homeowner also confirmed the real-world result. Before the work, the house could climb to approximately 80°F on hot afternoons. After the corrections, the highest temperature the homeowner observed was approximately 76°F.

The casita was already being conditioned by its dedicated mini-split, eliminating the need to push conditioned air through the original long duct run to that detached space.

Why we check airflow before reaching for refrigerant

You can connect gauges to an air conditioner and get numbers. That does not necessarily mean you know what those numbers mean yet.

Before adjusting a refrigerant charge, we want to know whether the evaporator has the airflow and heat load it is supposed to have. Depending on the system, that can mean inspecting and testing:

• The air filter and evaporator coil
• Blower configuration and operation
• Supply and return ductwork
• Zone and bypass dampers
• Total external static pressure
• Equipment staging
• Return- and supply-air conditions
• Superheat and subcooling after stabilization

Only after the airflow and operating conditions make sense can the refrigerant readings be interpreted with confidence.

On this job, there was no single magic failure. We found reduced programmed cooling airflow, dirty coils, a zoning arrangement that needed additional balancing, and a refrigerant charge approximately two pounds low. Correcting the system required addressing all of them.

Zoned HVAC systems must be tested as the homeowner uses them

Zoning can work very well when it is properly designed and commissioned. But closing part of a duct system does not make the furnace, evaporator, or outdoor unit proportionally smaller.

The blower, coil, condenser, ductwork, bypass, dampers, and controls still have to work together under each zone combination the system will encounter. A system may appear acceptable with every damper open and behave very differently when only one zone calls.

That is why testing only with every thermostat calling can miss the condition that actually causes the homeowner’s complaint.

What homeowners can take from this case

If an air conditioner performs reasonably well in the morning but loses ground during hot Texas afternoons, that does not automatically mean the home needs a larger system. It also does not automatically prove a refrigerant, thermostat, or zoning problem.

On a zoned system, the diagnostic should include how airflow, static pressure, supply temperature, and refrigeration performance respond as individual zones open and close.

This case involved one particular equipment combination and duct system. Its measurements are not universal charging targets or a do-it-yourself diagnostic procedure. Refrigerant service and internal equipment adjustments should be performed by a qualified HVAC professional using the manufacturer’s information for that specific system.
